Introduction:
Back Light series light source has many advantages such as good uniformity, ultra thin and long lifetime. We provide various light sources for visual inspection system.
S600 is a high brightness LED flat light source built in with Aluminum print circuit board and high precision to achieve desired from flat direction.
LitSource Technology Ltd. also offers dedicate controllers that support 2~8 channels.
Features:
● Cost-effective solutions
● Uses ultra brightness 3020/3528 SMD LED, 360-degree shadow-free illumination in high density
● Wide range of applications
● Steady brightness, long lasting and low thermal
● Strobe and continuous operation available
● Varies colors could be choose - White, Red, Green, Blue, UV, IR
Applications:
● Positioning for substrates and printed boards, inspection for chip components
● Liquid crystal adjustment, plastic container inspection
● IC impress inspection and suchlike, Label inspection
● Varies plastic components appearance QC
Specification:
Characteristic |
Typical |
Unit |
Min. |
Typ. |
Max. |
1 |
Resolution |
— |
1750 |
— |
dots |
2 |
LED Viewing angle 2θ1/2 |
— |
120 |
140 |
degree |
3 |
LED package type |
3528 (SMD) |
mm |
4 |
Color |
615 |
625 |
630 |
nm |
5 |
Luminous intensity per LED (20mA) |
— |
650 |
750 |
cd |
6 |
Operating Voltage |
— |
24 |
— |
VDC |
7 |
Power consumption |
— |
30 |
60 |
W |
8 |
Operating temperature |
-10 |
— |
50 |
℃ |
9 |
Guarantee |
1 |
year |
10 |
Frame material |
Steel (Black) |
|

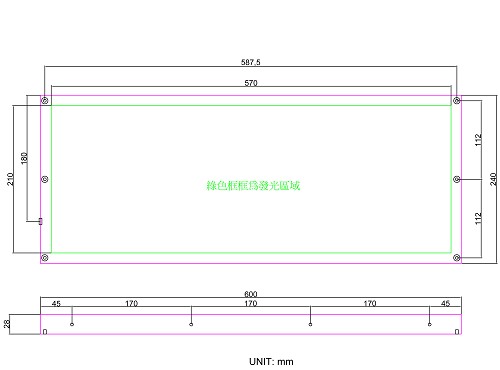

Dimension: (Click picture to enlarge)
 Download detailed specifications |
|
