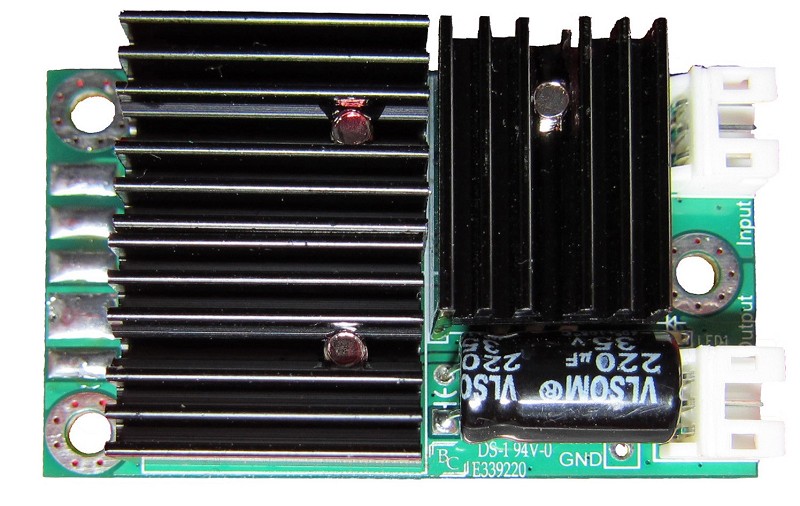

 Click picture to enlarge |
Introduction:
HPM (High Power Module) Series are specifically designed as the high power LED driver modules with the PWM LED Driver IC – WD310. HPM-10 can drive the full color LED strings at the same time with the individual color (R/G/B) in each of the three channels with high current.
The compact size of HPM-10 makes the implementation much easier with various lighting fixtures and in narrow space. Users can extend the lighting system by connecting the modules in series and create the various light shows with the powerful and simply operate controller – SPARK Series.
Features:
● 3 Channels with High Current – Maximum 4A For Each Channel
● Switchable Input Voltage - DC 12V or 24V with Protection Circuit
● 3-Line Data Transmission Mode with High Speed Serial Signal (TTL)
● Build-In PWM Driver IC and the Refresh Rate > 200 Hz
● Excellent Cascade Ability for Users to Flexible Extend the Lighting System
● Easy to Implement with the Miniaturization Design.
● Linear Adjustment of Each Color Up to 12-bits (4096 Gray Scale)
● Easy to Create the Lighting-Show with SPARK Series Controller
Applications:
● Especially suit for the LED Decorative Lighting Fixtures designed without Driver ICs, such as the Light Bar, Cluster, Spot Light, Channel Letter, Wall Washing and so on
● Use in an Astonishing Array of Locations, such as the Architectural Landmarks, Signature Buildings, Public Space, Signage, Advertising Light Box, Landmark and so on
Electrical Characteristics:
|
Characteristic |
Description |
Unit |
1 |
No. of Channels |
3 (R.G.B) |
CH |
2 |
Current for Single Channel |
4 (max) |
A |
3 |
Input Voltage |
DC +12V or +24V |
VDC |
4 |
Power Consumption |
< 2 |
W |
5 |
Gray Scale Per Channel |
4096 |
|
6 |
Refresh Rate |
200 ~ 1000 |
Hz |
7 |
Operating Temperature |
-10～70 |
℃ |
8 |
Signal Interface |
TTL (In/Out) |
Specification Description:
HPM-10 can simultaneously drive 3 channels with R.G.B. LED strings and the maximum driving current of each channel is 4A. Using 3-line transmission mode with high speed serial signal (TTL) to transfer the data.
HPM-10 has a PWM LED driver IC - WD310 embedded in and capable of controlling the gray scale up to 12 bits (4096 steps) without a large amount of control data and the lighting system can display the delicate color changing with a high refresh rate.
HPM-10 has a good driving ability for cascading modules and users can flexible extend the quantity of lighting fixtures and easily arrange the system scheme. The distance between two cascade modules is recommended within 3 meters.
HPM-10 has the protection circuit for power switching (12V or 24V) and the input voltage of HPM-10 need to be the same DC voltage of the lighting system. Users can simplify the power system design by connecting the same power supply with lighting fixtures.
 Download detailed specifications |
|
