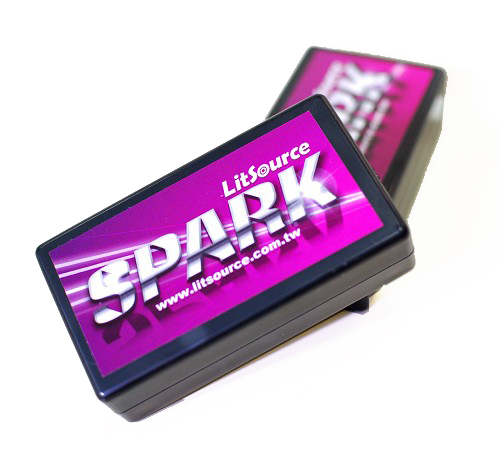

Introduction:
SPARK is a multi-supporting controller. It can support most of PWM LED driver IC in the world such as WD310, DM412, MY9291, MY9221, MY9231, LPD6803, P2571, and so on.
SPARK also offers the lighting fixture design as well as the dedicated software with user-friendly, Lighting-effect-editing. SPARK applies the best way to create your LED decoration system.
Features:
● Easy install, low cost and high performance
● 6 standardized effect programs enclosed
● Most of LED driver ICs could be drive
● 12V or 5V input voltage selectable
● Dedicate software support
● Max. 384 pixels (1152 channels)
● Broadcast speed is adjustable
Applications:
● Commercial space lighting
● Interior design
● Garden lighting system
● City landscape lighting beautification
● Evaluate new PWM driver IC
Paremeter:
|
Characteristic |
Description |
Unit |
1 |
Pixel |
Max. 384 |
pix |
2 |
Input Voltage |
DC +5V or +12V |
DCV |
3 |
Power consumption |
>2 |
W |
4 |
Frame rate |
Adjustable by variable resistor VR1 |
Hz |
5 |
Gradient |
In accordance with IC Spec. |
|
6 |
Operating temperature |
-10~70 |
℃ |
7 |
Water proof |
IP45 |
8 |
Output Signal |
TTL |

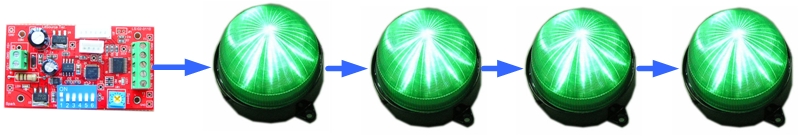

Application Architecture: (Click picture to enlarge)
● Applying to Cluster, Spot Light, Strip, Wall Washer, channel letter etc
● PCless perform default programs
● Using RS232 interface of PC to download light patterns
Default program:
|
|
DIP-1 ON: |
Discharge |
|
|
At the beginning, all of strings are brightest, and then darken gradually, like discharge |
|
|
|
DIP-2 ON: |
Twinkle |
|
|
Lamp random lit, brightness and location of driver randomly generated, when the lamps gradually darken the driver then to produce new lighting |
|
|
|
DIP-3 ON: |
Color chase |
|
|
Move color-level gradually |
|
|
|
DIP-4 ON: |
Shutter |
|
|
Shutter effect simulation |
|
|
|
DIP-5 ON: |
Colorful gradient |
|
|
In accordance with the color sequence change gradually |
|
|
|
DIP-6 ON: |
Ripple |
|
|
Simulate water corrugated action |
