G220 Introduction:
G210 is a high-performance LED lighting controller and designed specifically for 3 channel PWM driver IC WD310. Not only with maximum 2048 pixels could be controlled but also provide 4M SRAM to demonstrate animation contents.
In addition to these, G210 also could be synchronized connection in some special areas of application.
G210 contains a USB interface which connects the lighting fixture design by the dedicated software “LEDitor” on PC to create your LED decoration system.
Note :
G220 and G210/211 is differences at the Memory size and TTL output connectors. Apart from this, all of functions are same.
Simultaneously, G211 had suspended production on Q2/2011 and G210 on Q1/2011.
Features:
● Easy install, low cost and high performance
● Simple and Single Player, 2 outputs
● Images download by using high-speed USB Interface
● Drive maximum 2048 pixels
● 4MB image memory, 2500 frame above
● Easy dedicated edit software (LEDitor) could change the light patterns in time
Parameters:
|
Characteristic |
Description |
Unit |
1 |
Pixel |
Max. 2048 |
pix |
2 |
Gray level |
12 |
bit |
3 |
Memory size |
32 |
MB |
4 |
Input Voltage |
12 or 5 |
VDC |
5 |
Frame rate |
20(default)/30 |
Hz |
6 |
Output port |
2 TTL/2 RS-422 |
|
7 |
Power consumption |
4(max) |
W |
8 |
Operating temperature |
-10～70 |
℃ |
9 |
Output Signal |
TTL/RS422 |

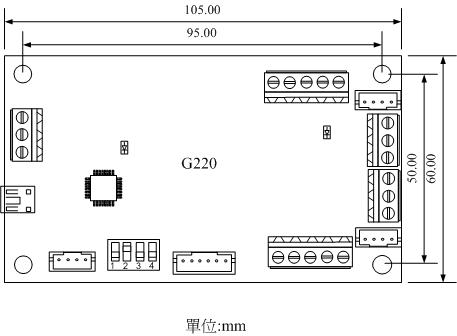

Outline Dimension: (Click picture to enlarge)
 Download detailed specifications
|
 Click picture to enlarge |
G210 Introduction: (G210 and G211 had suspended production, and upgraded to G220)
G210 is a high-performance LED lighting controller and designed specifically for 3 channel PWM driver IC WD310. Not only with maximum 2048 pixels could be controlled but also provide 4M SRAM to demonstrate animation contents.
In addition to these, G210 also could be synchronized connection in some special areas of application.
G210 contains a USB interface which connects the lighting fixture design by the dedicated software “LEDitor” on PC to create your LED decoration system.
Features:
● Easy install, low cost and high performance
● Simple and Single Player, 2 outputs
● Images download by using high-speed USB Interface
● Drive maximum 2048 pixels
● 4MB image memory, 2500 frame above
● Easy dedicated edit software (LEDitor) could change the light patterns in time
Applications:
● Commercial space lighting
● Interior design
● City landscape lighting beautification
● Garden lighting system
|
|
