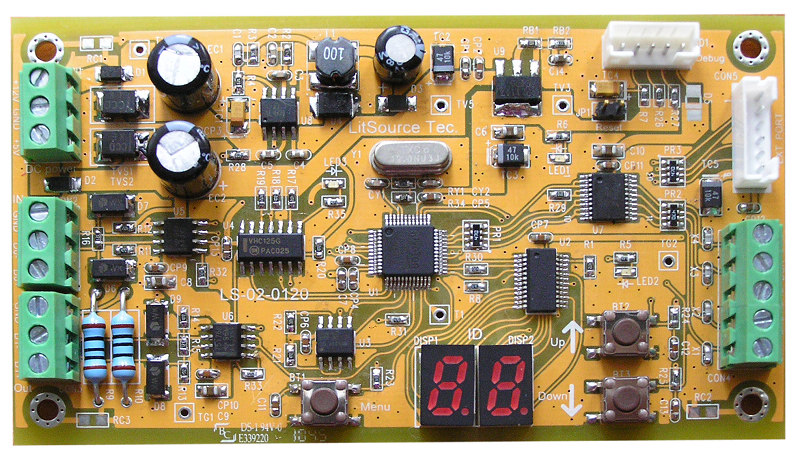

 Click picture to enlarge |
Introduction: (SPARK-S had suspended production, and upgraded to SPARK-S2)
SPARK-S is an evolution version of SPARK. Not only support multiple PWM driver ICs such as WD310, MY9291, MY9221, DM413, MBI6010, MBI6020, D705, LPD6803… but also provide synchronizing control at varying areas in a region.
SPARK-S offers the lighting fixture design by the dedicated software (refer to Software user manual). SPARK-S applies the best way to create your LED decoration system.
Features:
● Easy install, low cost and high performance
● 100 sets synchronizing control
● ID. Connection searching automatically
● 8 standardized effect programs enclosed
● Compatible with most of LED drivers
● 12V or 5V input voltage selectable
● Dedicate software support
● Max. 512 (1536 channels) pixels supported per set
Applications:
● Commercial space lighting
● Interior design
● New PWM driver IC evaluation
● City landscape lighting beautification
Parameters:
|
Characteristic |
Description |
Unit |
1 |
Drivable Pixel |
512 |
pix |
2 |
Input Voltage |
DC 5V or 12V |
VDC |
3 |
Power consumption |
3 (max) |
W |
4 |
Frame rate |
20 |
Hz |
5 |
Synchronization |
100 |
set |
6 |
Gradient |
In accordance with IC Spec. |
|
7 |
Operating temperature |
-10～50 |
℃ |
8 |
Shipping package |
PCBA |
9 |
Output Signal |
TTL |

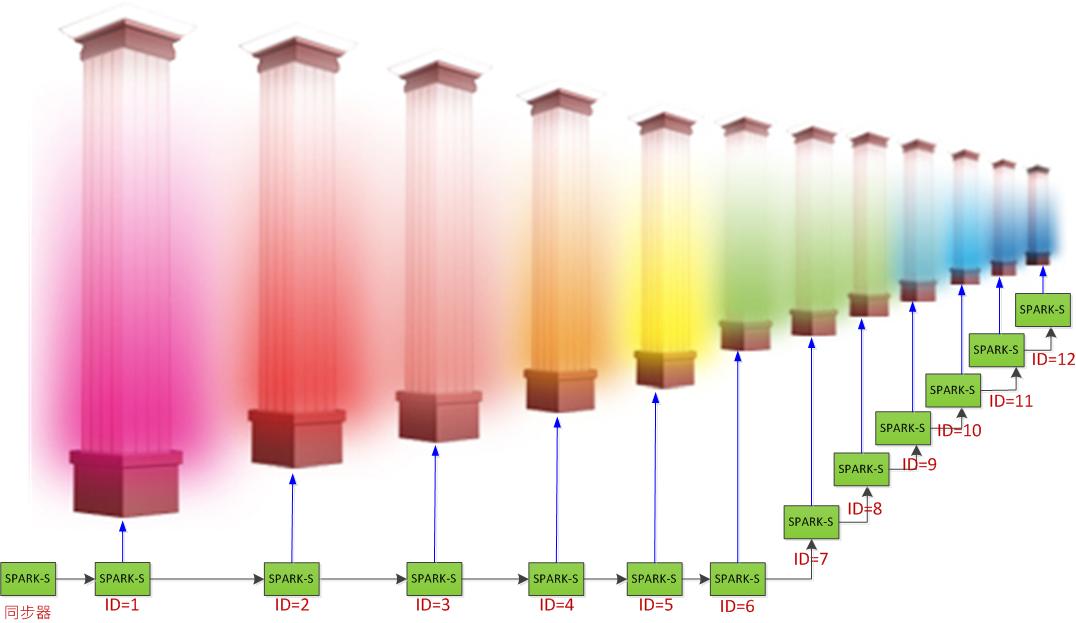

Application Guide: (Click picture to enlarge)
 Download detailed specifications |
|
