Introduction:

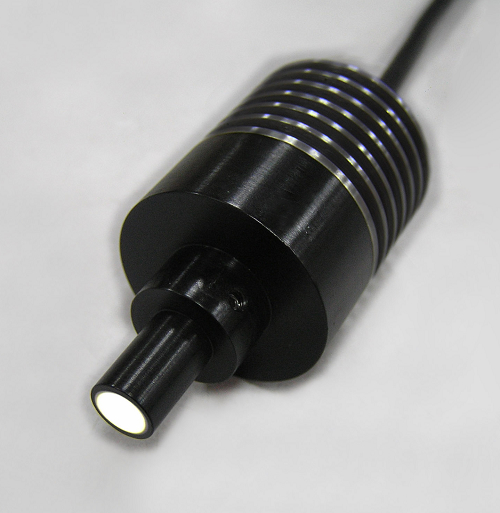

CS08 Coaxial Light series light source has many advantages such as good uniformity, long lifetime and newest optical structure design. We provide various light sources for visual inspection system.
Coaxial Light series generate a narrow irradiated area that’s using a high power LED coaxial light source and built in the optimized Alumine print circuit board and high precision to achieve desired.
LitSource Technology Ltd. also offers dedicate controllers that support 4~12 channels.
Features:
● Cost-effective solutions
● Uses 3W high power LED, provide a shadow-free illumination in high density
● Steady brightness, long lasting and low thermal
● Strobe and continuous operation available
● Varies colors could be choose – White, Red, Green, Blue
Applications:
● Positioning for substrates and printed boards, inspection for chip components
● Liquid crystal adjustment, plastic container inspection
● IC impress inspection and suchlike, Label inspection
Specification:
Characteristic |
Typical |
Unit |
Min. |
Typ. |
Max. |
|
1 |
Resolution |
— |
1 |
— |
ea |
2 |
Color (White) |
5500 |
|
7500 |
K |
3 |
Luminous intensity (700mA) |
|
150 |
|
lm |
4 |
Operating Voltage |
|
|
3.5 |
VDClm |
5 |
Power consumption |
|
|
3 |
W |
6 |
Operating temperature |
-10 |
— |
50 |
℃ |
7 |
Guarantee |
1 |
year |
8 |
Frame material |
Al (Black) |
|
