Introduction:
Ring Light series light source has many advantages such as good uniformity and long lifetime. We provide various light sources for visual inspection system.

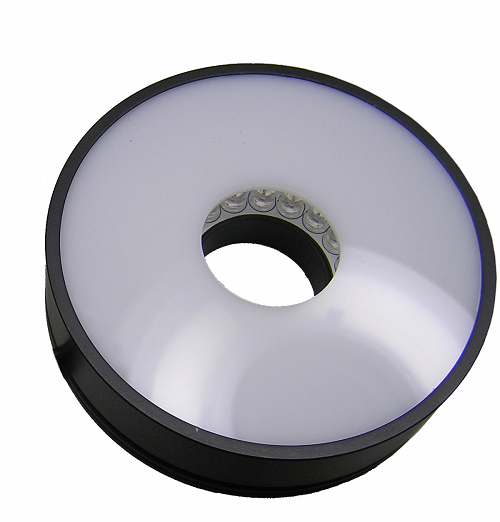

R090 Ring Light series is a high brightness LED ring light source built in with the optimized flat print circuit board and high precision to achieve desired ring angle from lower to vertical.
R090 Ring Light series generate a wide irradiated area, major support large materials such as O-ring, screw, PCB, label, touch panel film and so on. Furthermore, R090 Ring Light series provide constant and hi-speed exposure types that let your inspection machines have more selective.
LitSource Technology Ltd. also offers dedicate controllers that support 2~4 channels.

Features:
● Cost-effective solutions
● Uses ultra brightness φ5 LED lamp, 360-degree shadow-free illumination in high density
● Wide range of applications
● Steady brightness, long lasting and low thermal
● Strobe and continuous operation available
● Varies colors could be choose – White, Red, Green, Blue, UV, IR

Applications:
● Positioning for substrates and printed boards, inspection for chip components
● Liquid crystal adjustment, plastic container inspection
● IC impress inspection and suchlike, Label inspection
● Touch panel film
● PCB alignment key

Specification:

Characteristic

Typical

Unit

Min.

Typ.

Max.



1

R090 Ring Light Resolution

77

dots

2

LED Viewing angle 2θ1/2

50

degree

3

R090 Ring Light angle

0

degree

4

LED package type

ψ5 (DIP)

mm

5

Wavelength

850

nm

6

Operating Voltage

12

VDC

7

R090 Ring Light Power consumption

2

W

8

Ambient temperature

-10

50

9

Guarantee

6

month

10

Frame material

Al (Black)





詳細規格書下載 (英文)
